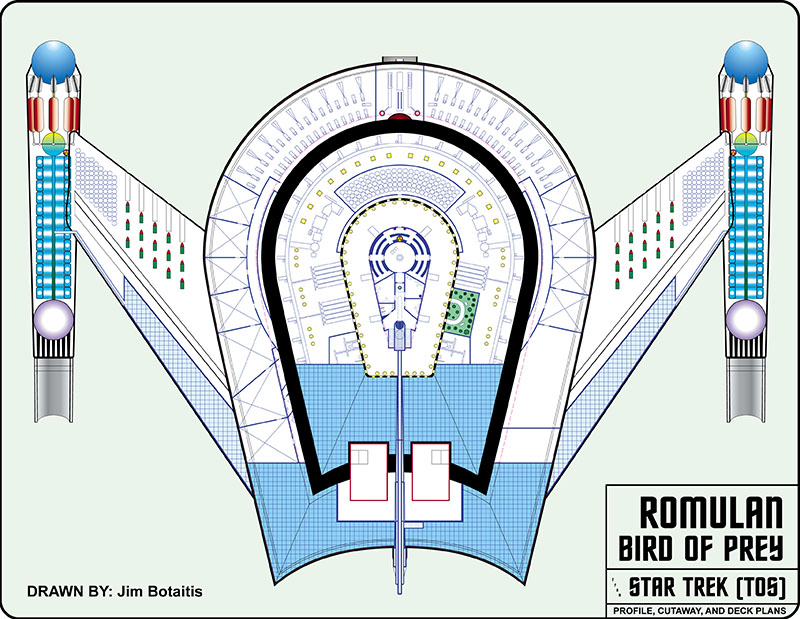

Romulan Bird of Prey [TOS]
Profile, Cutaway, and Deck Plans
Profile, Cutaway, and Deck Plans
Illustrator: Jim Botaitis
Copyright: 2021
AUTHOR'S NOTES
After drawing blueprints of over a dozen Federation vessels I wanted to compare them to Romulan, Klingon and Gorn ships. We never saw the interior of a Klingon ship (except as used by the Romulans), and we never saw a Gorn ship (inside or out). I decided to start with the Romulan Bird of Prey (BoP).
There are three basic questions:
1. How big is this ship?
2. What are the shapes and proportions of the various components of the ship?
3. What do we know about the interior of this ship?
I hope the plans provide you with some pleasure, information, and ideas for contemplation / consideration.
Note: Revised for 2025.
 |
 |
Sheet 1: Introduction |

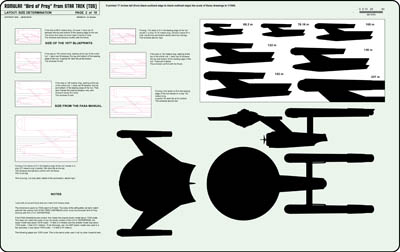

Sheet 2: Size Determination |
 |
 |

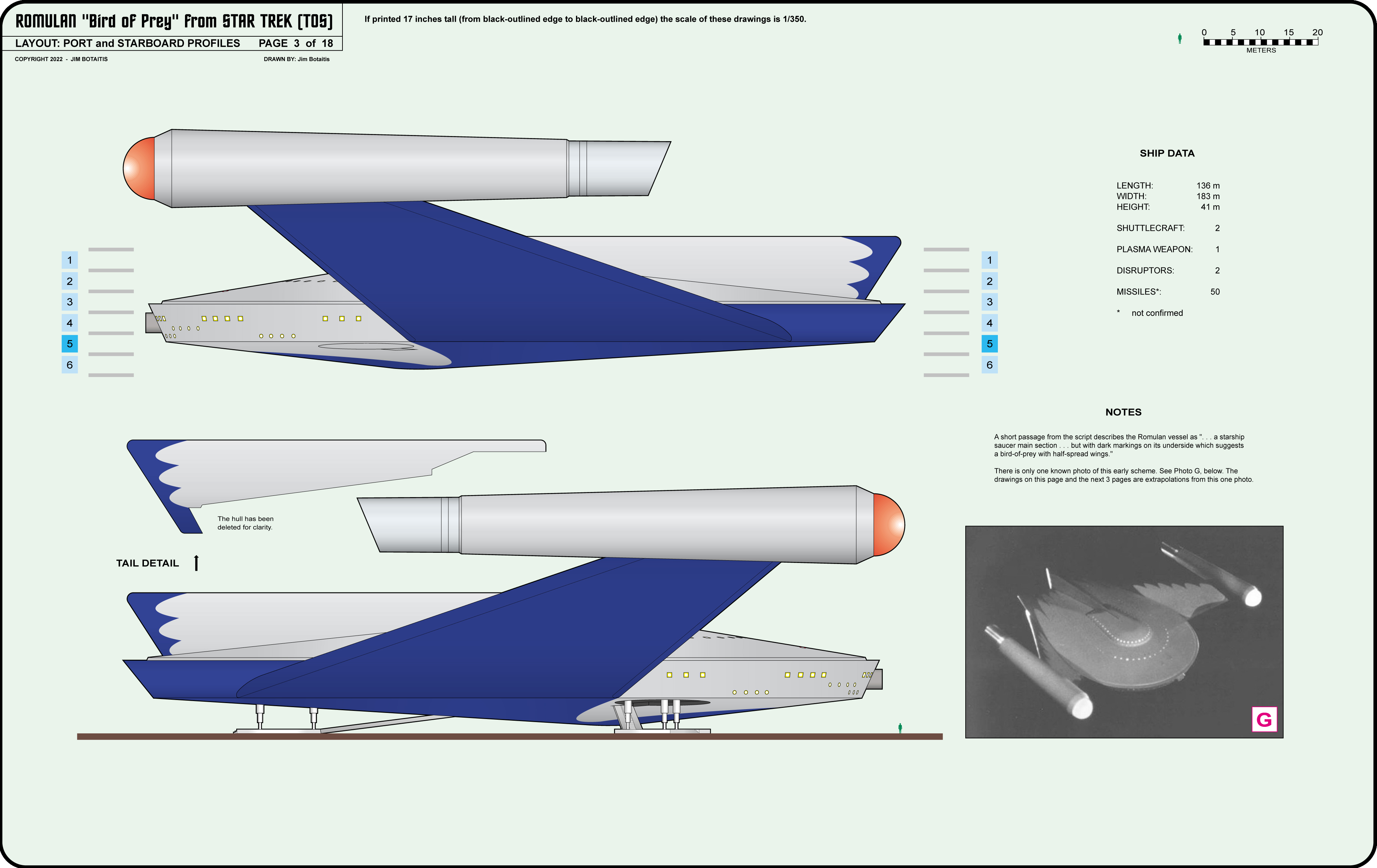

Sheet 3: Port / Starboard Profiles |

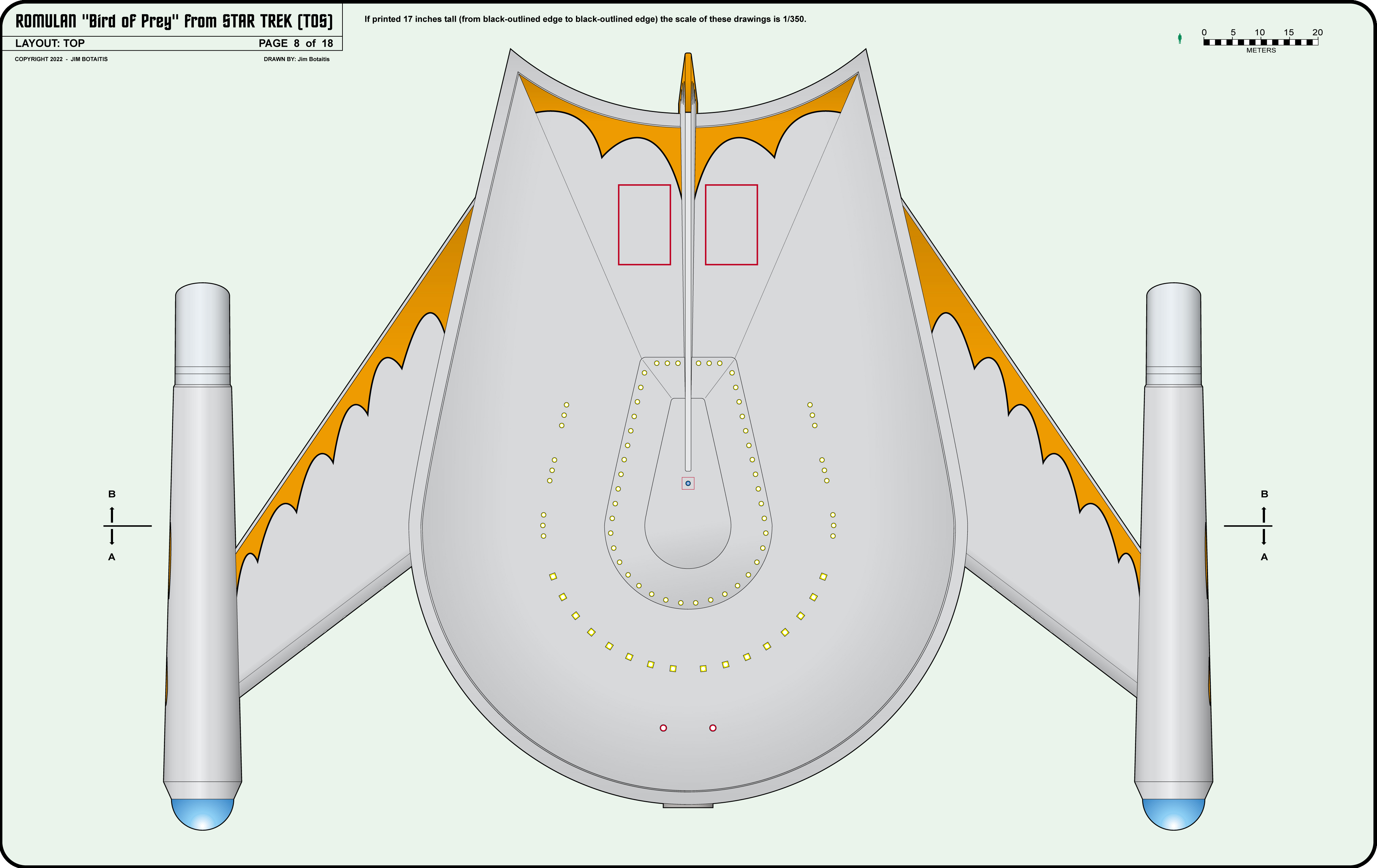

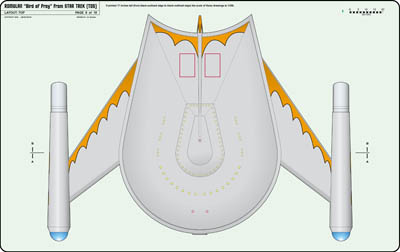

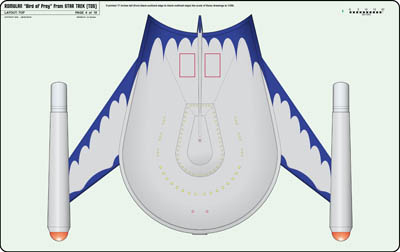

Sheet 4: Top View |
 |
 |

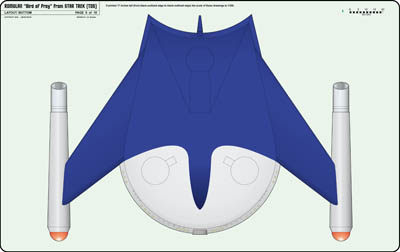

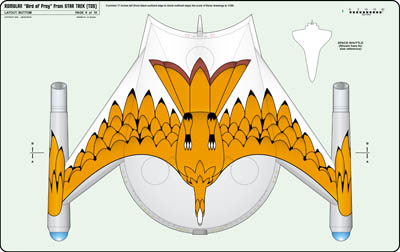

Sheet 5: Bottom View |

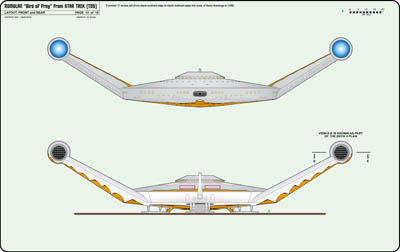

Sheet 6: Front / Rear Views |
 |
 |

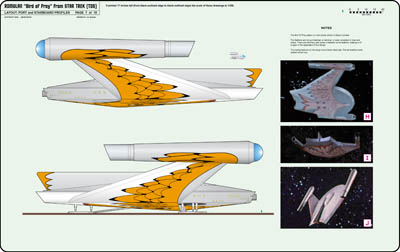

Sheet 7: Port / Starboard Profiles |
Sheet 8: Top View |
 |
 |
Sheet 9: Bottom View |

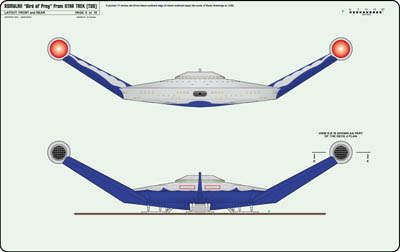

Sheet 10: Front / Rear Views |
 |
 |

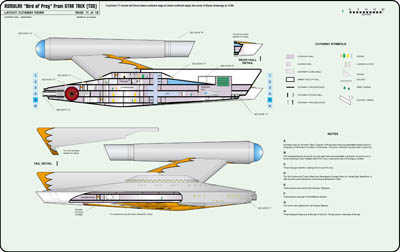

Sheet 11: Cutaway Views |

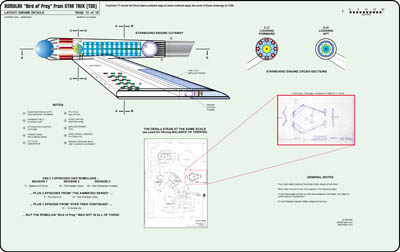

Sheet 12: Engine Details |
 |
 |

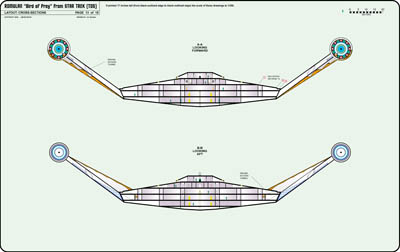

Sheet 13: Cross-Sections |

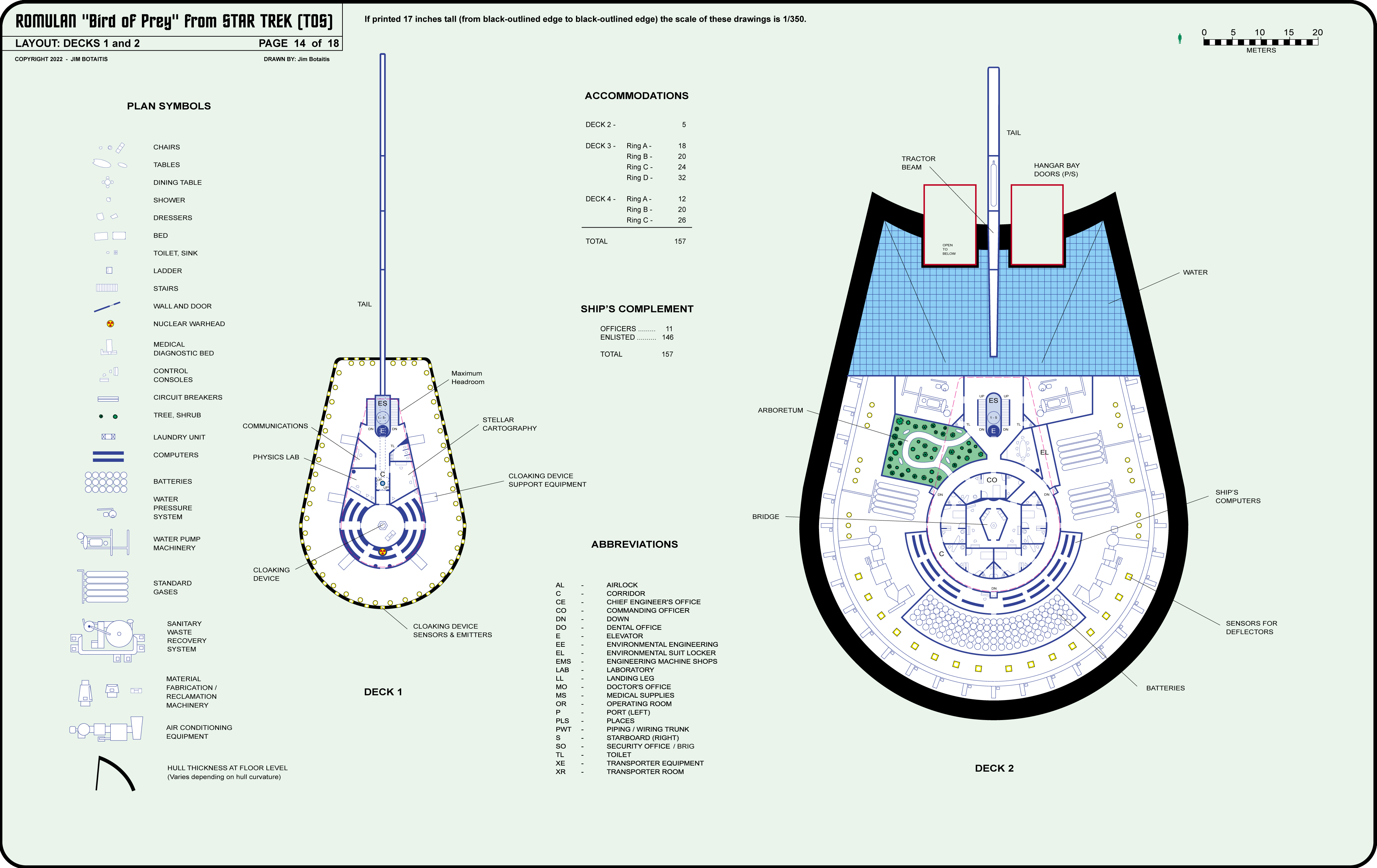

Sheet 14: Decks 1 and 2 |
 |
 |

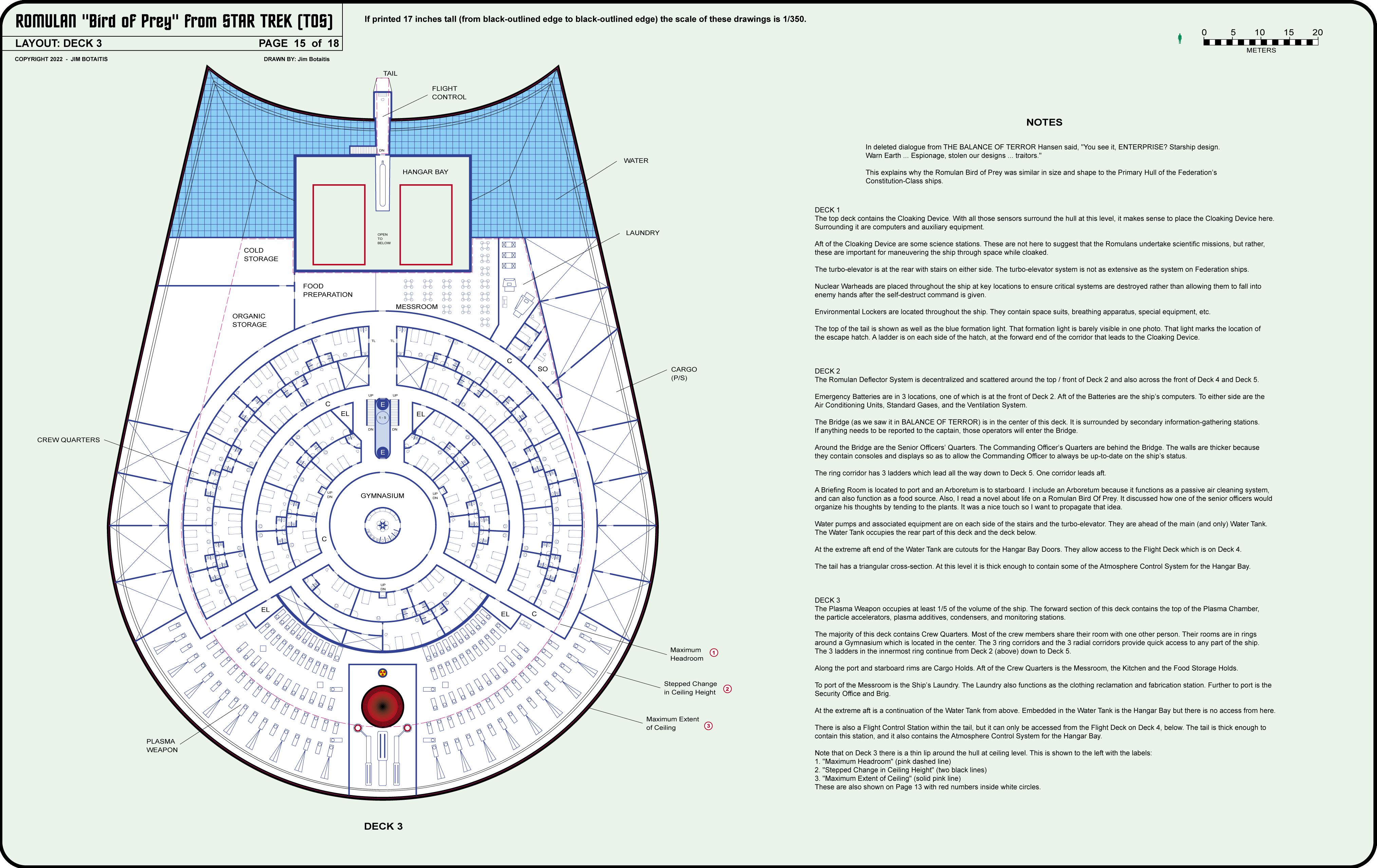

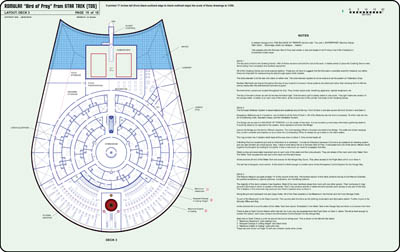

Sheet 15: Deck 3 |

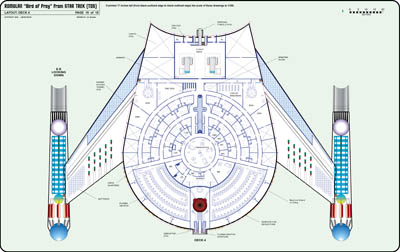

Sheet 16: Deck 4 |
 |
 |

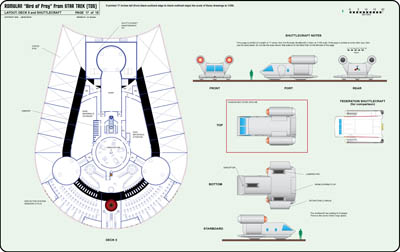

Sheet 17: Deck 5 and Shuttlecraft |

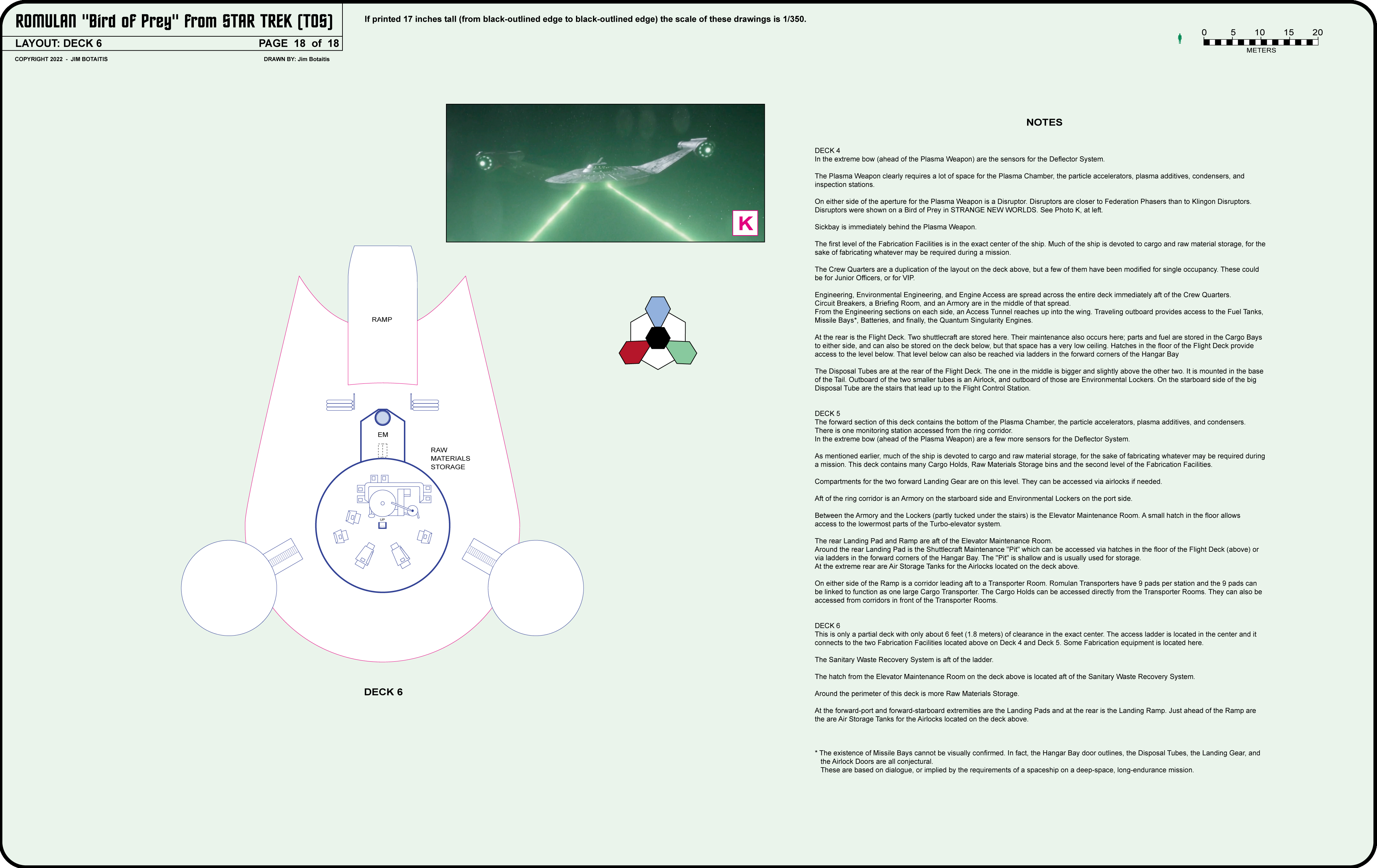

Sheet 18: Deck 6 |
- View more Star Trek Blueprints and Schematics -
